Soundproof Movable Partitioning Wall System For Banquet Hall

SW MOVABLE PARTITION-Soundproof Movable Partitioning Wall System For Banquet Hall

SW movable partition is a kind of foldable  soundpoof partition wall used as "drywall" or to divide space, which is movable and can be folded beside. The product is composed of multiple soundproof wall panels which can be moved flexibly through the guide rails and hanging wheels, by splicing or separation of the panels. It is easy to achieve the effect of flexible use of space with ideal soundproof performance.

It is widely used in hotel banquet halls, office, conference rooms, training rooms, classroom,, exhibition centers and other places.

Our company provides integrated services for the design, production, sales and installation of movable partitions.,etc. The products include SW65, SW80, SW85, SW100 and ultra-high models, with a variety of finish choices, and customized design and production available.

The sound insulation effect of the product is suitable for the needs of different places, and the maximum sound insulation volume can reach 50DB.

Product types:

SW 100 type movable partition

* Two types: single-wheel movable partitions that can turn 360 degrees in all directions and single-directional double-wheels movable partitions.

* Use 100mm thick 6063-T6 aluminum alloy frame material as the main structure of the product.

* The top adopts 80-type guide rail and hanging wheel, which can flexibly divide the space in all directions and multiple angles.

* Applicable height: 4m-6m

* Maximum load-bearing of guide rail: 650kg/m

* Sound insulation coefficient: 45-55dB

Finish:

* Melamine

* Veneer

* Fabric hard panel

* Fabric soft panel

* Leather hard panel

* Leather soft panel

* Polyester fiber panel

* Steel plate

SW Movable partition structure:

Detailed Structure:

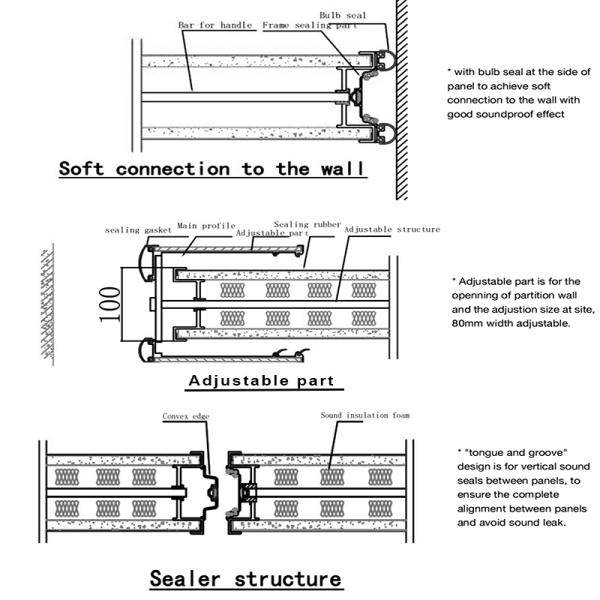

SW Movable partition Sealing System:

1. Concave/convex border sealing devices are on the left and right sides of each movable partition, to ensure the complete alignment between panels and avoid sound leak.

2. Magnetic strips   are used on two sides of panels, which can attract each other well and achieve the best sealing effect at the joint of two movable partitions.

3. Through specialized technology,   PVC rubbers are used to fill all the gaps,   which can make the upper and bottom mechanical seal stretching freely with good seal and can avoid the sound penetration.

SW Movable partition stocking types:

We sell to the countries oversea! We works abroad!

FAQ

Q1: What is the delivery time?

Normally the production time is within 7-15 days, but it also depends on the order qty and orders scheduling situation.

Q2: If OEM & ODM available?

Yes, it is available to provide OEM or ODM service.

Q3: Do you provide samples?

We provide movable partition small model samples with few charge.

Q4: What is your payment term?

50% deposit, balance paid before goods loading for movable partition order as it is customized sizes.

Q5: What is the MOQ?

No limit quantity requirement.

Q6: Do you supply  accessaries for installation?

Yes, we supply accessaries for installation of track to the support steel system, but steel profiles not provided as it depends on sizes at site.

Q7: Do you provide installation guide?

Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide online or at site.

Q8: Can you do the installation work in abroad?

Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site which is more economic for the clients.
